Scope of Work for Airport

Structural Design of Concrete Foundation for a Pre-engineered Steel Aircraft Hanger, Structural Design for Interior Fit-out Elements.
Sub-consultant to General Contractor on a design/build project, requiring structural design and drafting of the cast in place concrete foundation and slab on grade with unique project requirements including:
  • 24”x24” concrete cross ties connecting main frame columns to resolve high lateral loads.
  • Second story 2,080ft2 mezzanine area utilizing 8” precast floor slabs.
  • 12” unreinforced concrete slab on grade in main hanger area.
  • New Aircraft Hanger – 163’-0” x 104’-0” pre-engineered building c/w 30’-0” x 25’-0” ancillary building.

Construction Value: $9,100,000.00

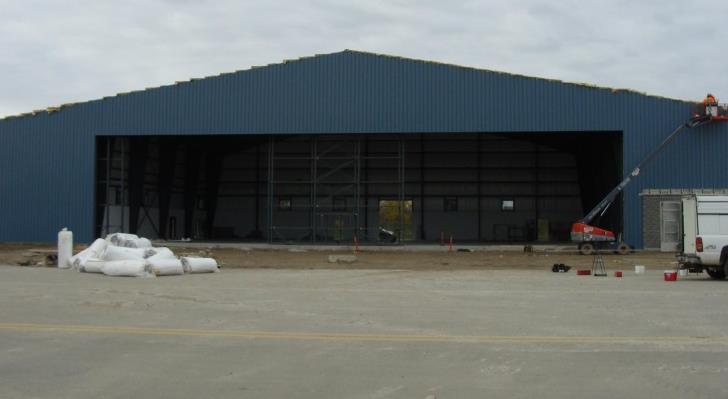

exterior cladding installation
Endwall elevation (airside) with exterior cladding installation being completed

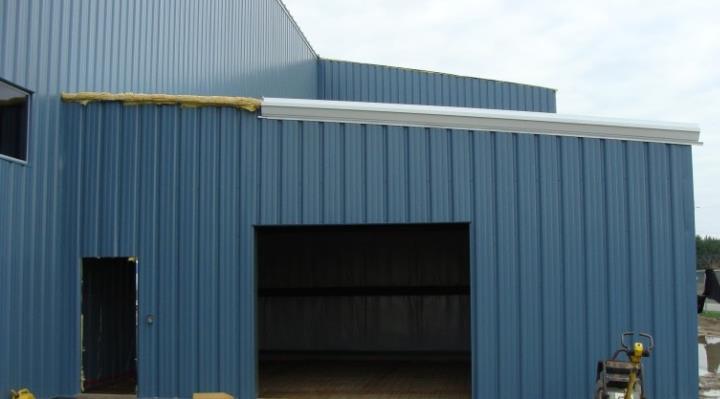

Ancillary building
Ancillary building (30’x25’) endwall elevation (roadside) with exterior cladding installation being completed

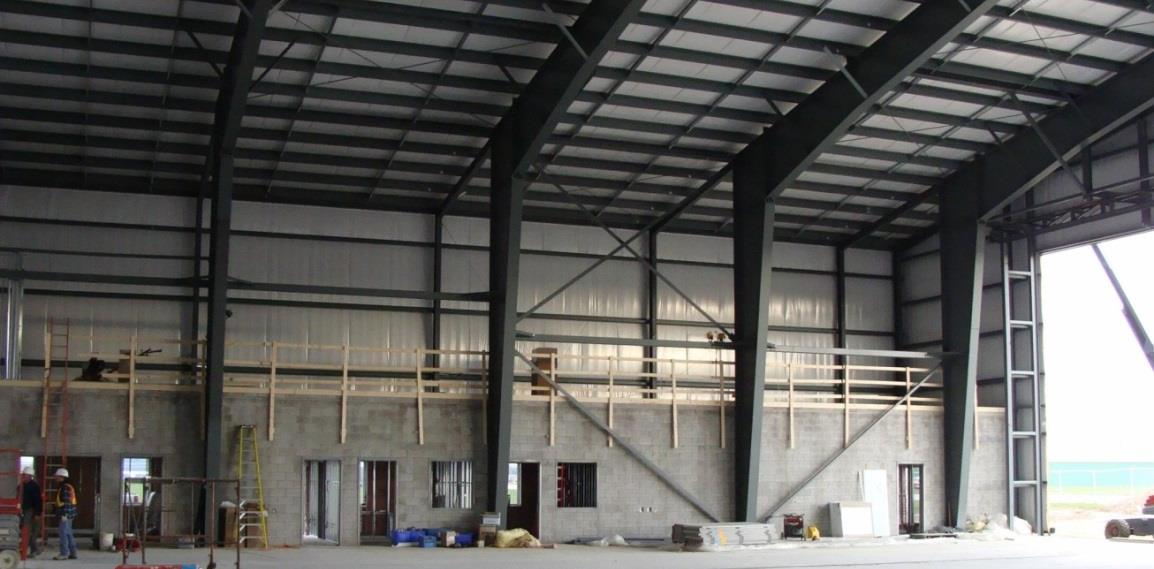

Interior main frames
Interior main frames and 20’x104’ mezzanine level
